EFS031 Linear Lights

EFS031

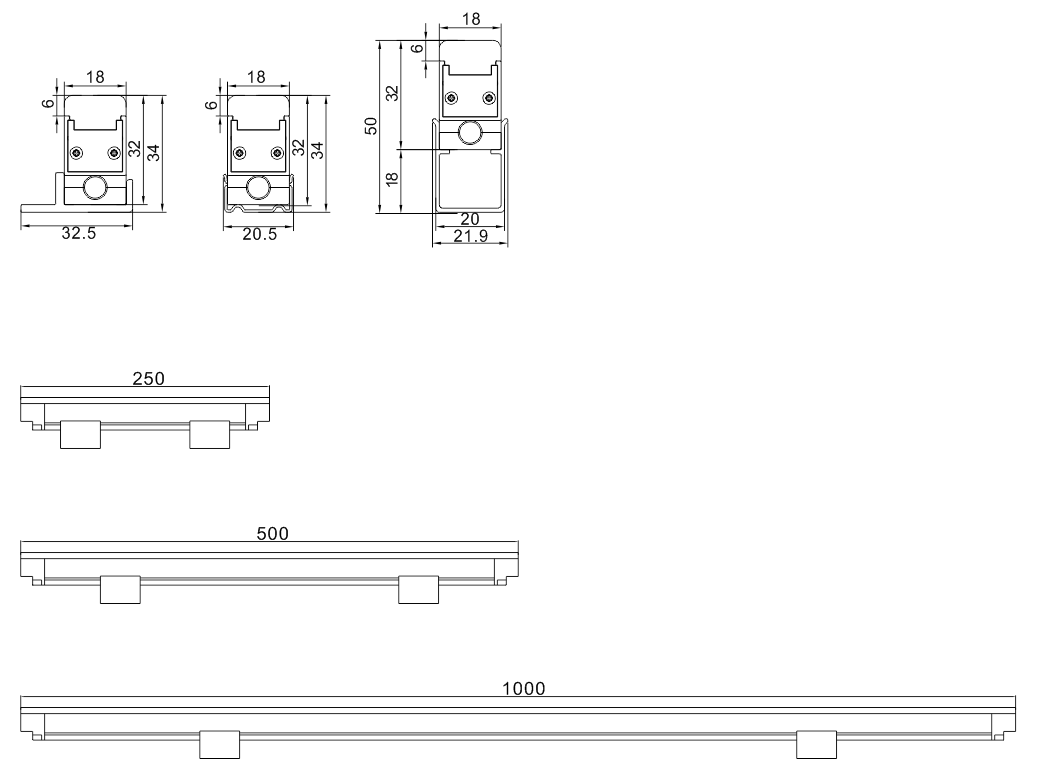

DRAWING SIZE

EFS031

DRAWING SIZE

DESCRIPTION

1. Mini size design, 35mm width only:

2. Aluminum 6063 body and tempered glass;

3. LED Chip ONE BIN ONLY:

4. Diversified beam angle options;

5. Surface mounting or recessed mounting options;

6. Available in customized specification.

ORDER CODE

Model	Power(W/M)	LED QTY	Voltage	LED	Color	Lumen(LM/M)	Beam Angle	Control
EFS031-01	12W	96 PCS	24V DC	OSRAM	Single Color	480LM	120°	ON/OFF
EFS031-02	16W	96 PCS	24V DC	OSRAM	Single Color	650LM	120°	ON/OFF
EFS031-03	16W	96 PCS	24V DC	OSRAM	Single Color	650LM	120°	DMX Control
EFS031-04	16W	96 PCS	24V DC	OSRAM	Single Color	650LM	120°	DMX Control
EFS031-05	16W	96 PCS	24V DC	Epistar	RGB	N/A	120°	DMX Control
EFS031-06	16W	192 PCS	24V DC	Epistar+OSRAM	RGBW	N/A	120°	DMX Control

CCT OPTIONAL

[Single Color] 2300K/2700K/3000K/3500K/4000K/4500K/5000K/5500K/6000K
	Red/Green/ Blue/Yellow/Amber/Turquoise

* The CCT are measured with an accuracy of +100K
* The power consumption with tolerance +1W
* Luminous flux tolerance +10%
* Detailed product datasheet contact ECO LITE Sales
