Project Description
Technical:

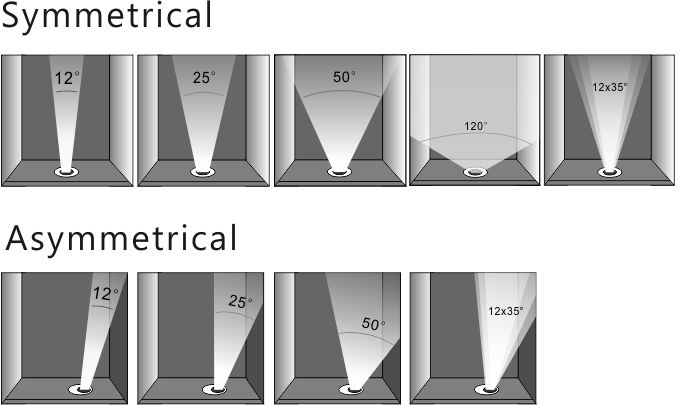

| * Material: SS 316L Front cover * Light Body:Aluminum with powder coating * Input Voltage: 24V DC * LED: CREE/Epistar * Color: 2700K/3000K/3500K/4000K/4500K/6000K/RGB * CRI:>80 * Cable: H05RN-F 2X1mm , L=1m, VDE Certified * IP Ranking: IP67 * Optics: Symmetrical Asymmetrical Frosted Glass |
||||||||
ORDER CODE
| Model | Power | LED Type | Color | Luminous Flux | Voltage | Optics | IP Ranking |

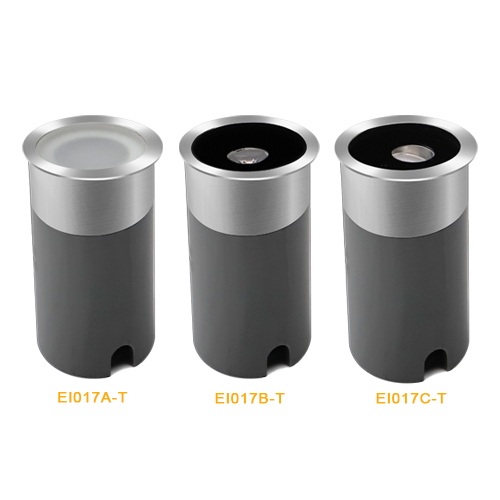

| EI017A-T | 3W | 2835-12LED | A | 40LM | DC 24V | 120° | IP67 |
| EI017B-T | 3W | CREE XP-G2 | A | 200LM | DC 24V | B | IP67 |
| EI017C-T | 3W | CREE XP-G2 | A | 200LM | DC 24V | B | IP67 |
| [A] | 2700k/3000k/3500k/4000k/4500k/6000k/RGB | |||||||
| [B] | 15/25/60° | |||||||
* The CCT are measured with an accuracy of +100K
* The power consumption with tolerance +0.5W
* Luminous flux tolerance +10%
* Detailed product datasheet contact ECO LITE Sales
