Project Description
DESCRIPTION

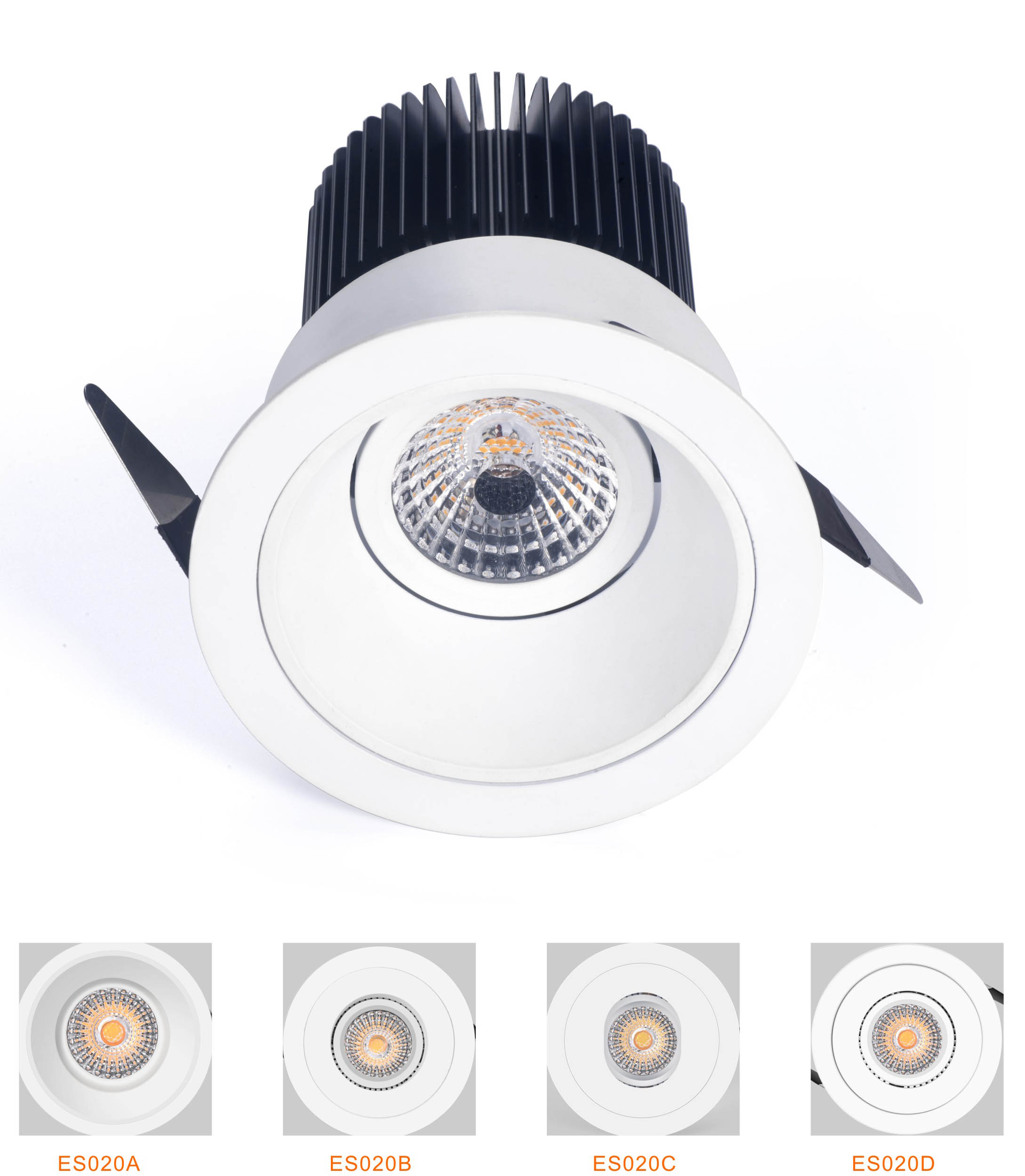

1. 360 Degree Adjustable Downlight；
2. Fixed down light body, removable and changeable light source, No damage to ceilling;
3. LED Chip controled as ONE BIN ONLY
4. Traic, 0~10V and Dali dimming are available
Technical:
Material: Aluminum 6063
Finishing: Powder Coating
LED: CITIZEN COB
CRI: >90
IP Ranking: IP44
Color:2700K/3000K/3500K/4000K/4500K/5000K/5700K/6500K
ORDER CODE

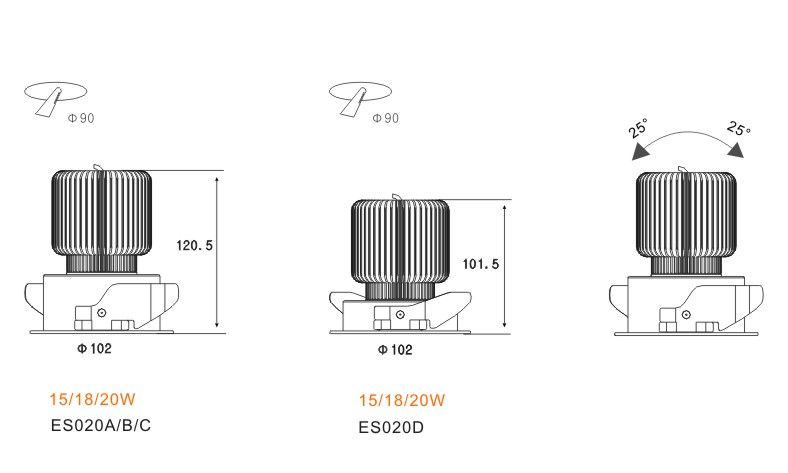

| Model | Power | Luminous Flux | Voltage | Optics |
| ES020A | 15/18/20W | 1200/1440/1600LM | 100V-240V AC | 15/24/38/60° |
| ES020B | 15/18/20W | 1200/1440/1600LM | 100V-240V AC | 15/24/38/60° |
| ES020C | 15/18/20W | 1200/1440/1600LM | 100V-240V AC | 15/24/38/60° |
| ES020D | 15/18/20W | 1200/1440/1600LM | 100V-240V AC | 15/24/38/60° |
* The CCT are measured with an accuracy of +100K
* The power consumption with tolerance +1W
* Luminous flux tolerance +10%
* Detailed product datasheet contact ECO LITE Sales
