Project Description
DESCRIPTION

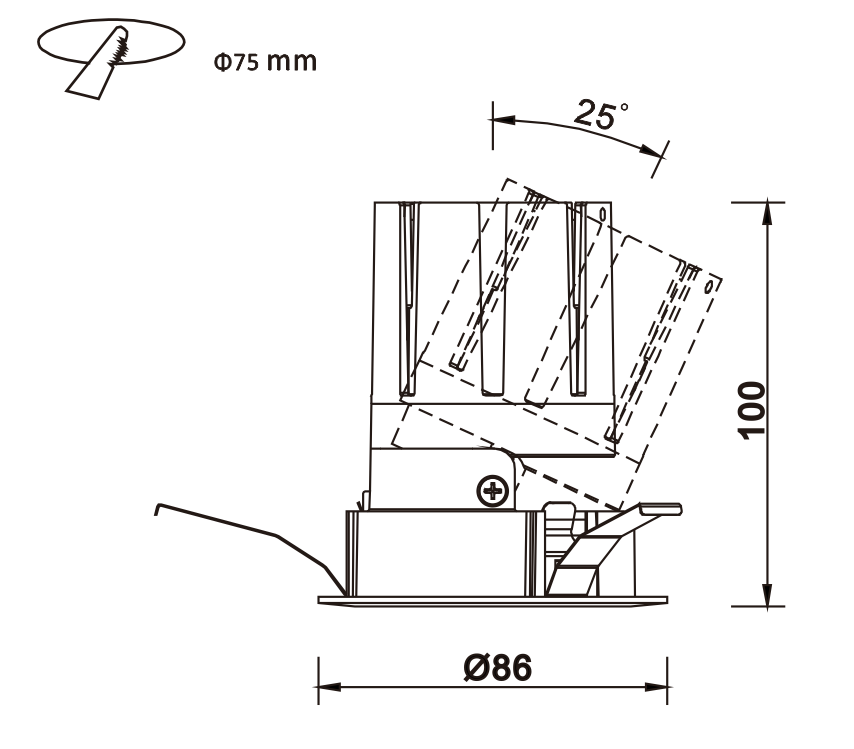

1. 360 Degree Adjustable Downlight；
2. Fixed down light body, removable and changeable light source, No damage to ceilling;
3. LED Chip controled as ONE BIN ONLY
4. Traic, 0~10V and Dali dimming are available
ORDER CODE
| MODEL |
POWER (W) |
INPUT | LED | IP |
LUM FLUX |
|
ES870B-01 |
8 | 110-240V AC | CITIZEN COB | 44 | 680 |
| ES870B-02 |
10 |
110-240V AC | CITIZEN COB | 44 |
850 |
|
ES870B-03 |
12 | 110-240V AC | CITIZEN COB | 44 |
1020 |
COLOR AND BEAM OPTIONAL
| COLOR (ONE BIN ONLY) | 2700K/3000K/3500K/4000K/5000K/6500K |
| BEAM ANGLE | 15°/24°/38° |
* The CCT are measured with an accuracy of +100K
* The power consumption with tolerance +2W
* Luminous flux tolerance +10%
* Detailed product datasheet contact ECO LITE Sales
